Detail Produk

2.4 GHz 5.5 dBi N-Type Male Omni Antenna

Kategori : Indoor Antenna Kode : IA24-05NM Harga : Rp 285.000,00   Antenna Indoor 2,4 GHz, 5.5 db, dengan konektor N-Male.   download brosur (pdf)

Applications:

• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g Wireless LAN
• IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
• Bluetooth®
• WiFi
• Wireless Video Systems
• Multipoint and Mobile Applications

Features:

• Flexible "Rubber Duck" antenna
• Tilt and swivel design
• N-Male Connector
• RoHS Compliant

• Frequency: 2400-2500 MHz
• Gain: 5.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0

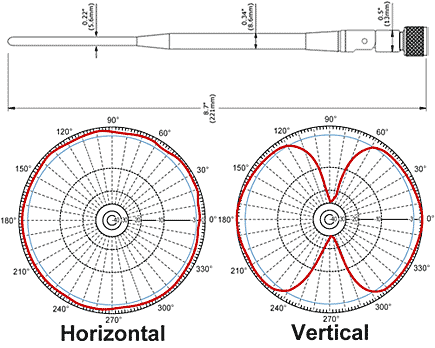

Mechanical Specifications

• Length: 8.7" (221 mm)
• Diameter: 0.5" (13 mm)
• Finish: Matte Black
• Connector: N-Male
• Operating Temperature: -40° C to to 85° C
• Flame Rating: UL 94HB
• Polarization: Vertical
• RoHS Compliant: Yes

Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
