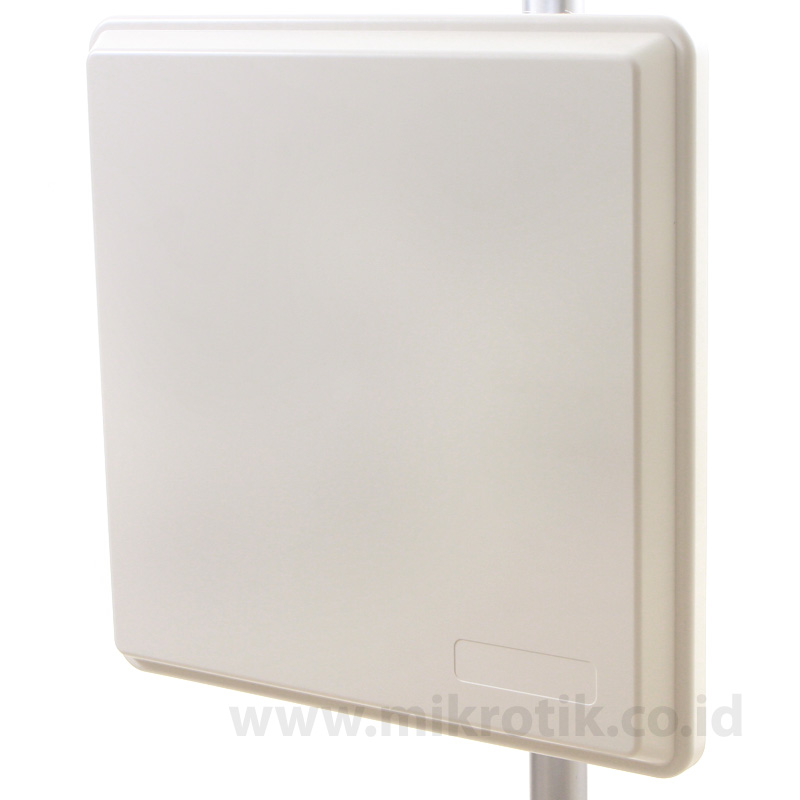

Flat Panel 2.3-2.7GHz 20dbi
klik pada gambar untuk melihat gambar lebih besar
|
Antenna flat panel untuk frekuensi kerja 2.3 hingga 2.7 GHz, dengan gain 20dbi.
|
Electrical
- Frequency range: 2.3 - 2.7 GHz
- Gain,typ.: 20 dBi @ 2.5-2.7, 19 @2.3-2.5
- VSWR, max.: 1.8:1
- 3 dB Beam-Width, H-Plane, typ.: 17 °
- 3 dB Beam-Width, E-Plane, typ.: 17 °
- Side Lobes, min.: -13 dB
- Polarization: Linear,Vertical or Horizontal
- Cross Polarization, min.: -20 dB
- Front to Back Ratio, min.: -35 dB
- Input power, max: 50 Watt
- Input Impedance: 50 Ohm
- Lightning Protection: DC Grounded
Mechanical
- Dimensions (HxWxD): 370 x 370 x 40 mm (14.5" x14.5" x1.6")
- Weight: 2 kg
- Connector: N-Type, Female
- Back Plane: Aluminum protected through chemical passivation
- Radome: UV Protected, Polycarbonate
Environmemtal
- Operating Temperature Range: - 40°C to + 65°C
- Vibration: According to IEC 60721-3-4
- Wind Load: 200 km/h (survival)
- Flammability: UL94
- Water Proofing: IP-65
- Humidity: ETS 300 019-1-4, EN 302 085 (annex A.1.1)
- Ice and Snow: 25mm radial (survival)
- Salt Fog: According to IEC 68-2-11
- Service Life: >10 years
Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
|
|
