Detail Produk

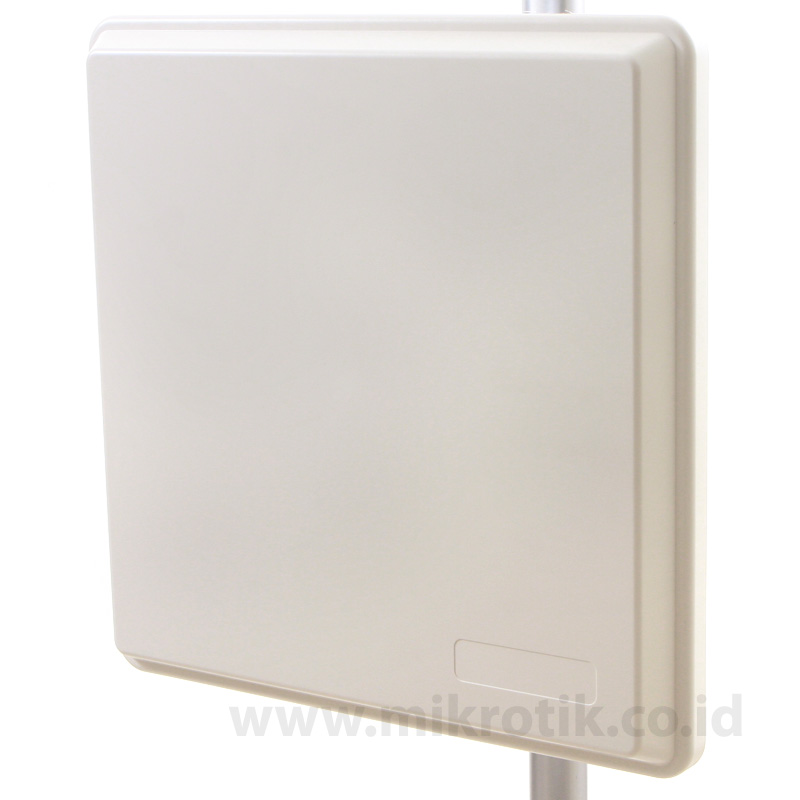

Flat Panel 4.9-6.1GHz 27dbi
klik pada gambar untuk melihat gambar lebih besar
|
4.9-6.1GHz (wide range frequency) flat panel antenna dengan gain tinggi 27dbi, termasuk 1 buah kabel jumper N-Male to N-Male 1 meter.
|
Electrical
- Frequency range: 4.9 - 6.1 GHz
- Gain,typ.: 26 dBi
- VSWR, max.: 4.9 - 5.875 @ 1.7 : 1 5.875 - 6.1 @ 2 : 1
- 3 dB Beam-Width, H-Plane, typ.: 7.5 °
- 3 dB Beam-Width, E-Plane, typ.: 7.5 °
- Side Lobes, min.: ETSI TS3, TS4, TS5
- Polarization: Linear,Vertical or Horizontal
- Cross Polarization, min.: ETSI TS3, TS4, TS5
- Front to Back Ratio, min.: ETSI TS3, TS4, TS5
- Input power, max: 50 Watt
- Input Impedance: 50 Ohm
- Lightning Protection: DC Grounded
Mechanical
- Dimensions (HxWxD): 370 x 370 x 40 mm (14.6"x14.6"x1.6")
- Connector: N-Type, Female
- Back Plane: Aluminum; protected through chemical passivation
- Radome: UV Protected, Plastic
- Mount: MNT-22
Environmemtal
- Operating Temperature Range: - 40°C to + 65°C
- Vibration: According to IEC 60721-3-4
- Wind Load: 200 km/h (survival)
- Flammability: UL94
- Water Proofing: IP-65
- Humidity: ETS 300 019-1-4, EN 302 085 (annex A.1.1)
- Ice and Snow: 25mm radial (survival)
- Salt Fog: According to IEC 68-2-11
- Service Life: >10 years
Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
|
|
