Detail Produk

OgmaConnect OC2511U (RoS Level 4)

klik pada gambar untuk melihat gambar lebih besar

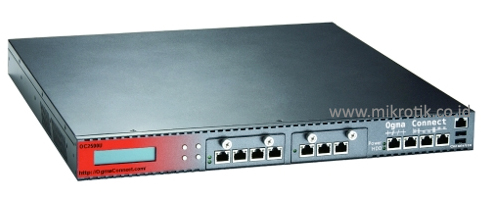

Kategori : Router Ogma Connect Kode : OC2511U-L4 Harga : Rp 26.470.000,00   Ogma Connect has introduced an extreme performance network security / utility platform, the OgmaConnect OC2511U, which is a 1U rack-mountable form factor with 11 Gigabit Ethernet ports, through PCIe / PCI interface and up to 4 sets of configurable LAN bypass segments for additional flexibility in terms of redundancy.   download brosur (pdf)

Spesifikasi

• CPU : Multi Core x86-64 64 Bit, Intel Core2Quad Processor
• Memory : 2 x 800MHz DDR2 Slots, 2 x1024MB 800MHz RAM (2Gb RAM) installed on the base Model
• Boot loader : Phoenix BIOS
• Data storage : 4x SATA, 3x 2.5" Internal HDD Bays, 1x CF Slots with True IDE IBM MicroDrive Support, 2x Internal USB 2.0 Header
• Ethernet : 11 x 10/100/1000 Mbit/s Intel Pro 1000 Gigabit Ethernet ports supporting Auto-MDI/X through Multiple PCI-E Lanes
• PCI Slots : 1x Mini PCI, 1x PCI 32 Bit, 1x PCI 64 Bit 133MHz
• Serial port : 1x RJ45 asynchronous serial port (external), 1x asynchronous serial port (internal)
• LEDs / LCDs : 1x back lit 2character x16 character LCD Display, Power and HDD LED
• Speaker : Mini PC - Speaker
• Power : IEC C13 Power Cord, input power: 100VAC-250VAC 50Hz- 60Hz (International PSU)
• Fan : 2x Redundant CPU/Power Supply /Chassis Fans,
• Dimensions : 43.1cm x 42.98 cm x 4.4 cm
• Temperature : Operational: 0°C to 40°C
• Humidity : Operational: up to 95% relative humidity (non-condensing)
• Power Supply : 270W ATX PSU
• Operating System : MikroTik Router OS

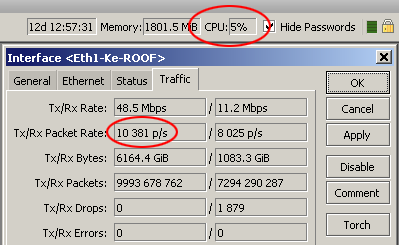

Screen capture OC2511 di kondisi real, mampu melewatkan lebih dari 10 ribu pps dengan CPU load 5%

Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
