Detail Produk

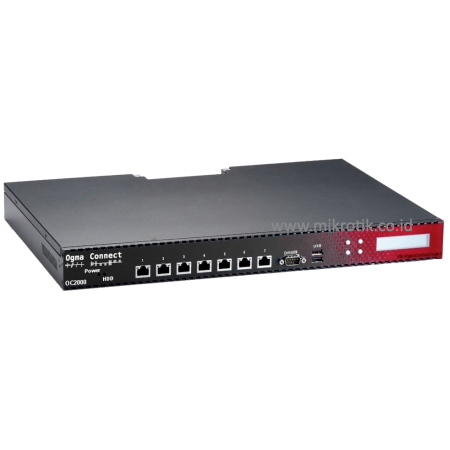

OgmaConnect OC2000U (RoS Level 4)

klik pada gambar untuk melihat gambar lebih besar

Kategori : Router Ogma Connect Kode : OC2000U-L4 Harga : Rp 15.525.000,00   This Ogma Connect OC2000U Appliance is presented in a 19" rack-mount form factor. One can deploy one of these appliances inside 1 U of Rack space. The Ogma Connect is powered by a state of the art Intel Multi Core Processor and the Intel 945G Chip-set.   download brosur (pdf)

Spesifikasi

• CPU : Multi Core x86-64 64 Bit, Intel Core2Duo Processor
• Memory : 2 x 667MHz DDR2 Slots, 2 x 1024MB (2GB RAM) installed on the base Model
• Boot loader : Phoenix BIOS
• Data storage : 2x SATA, 2X IDE, 1x CF Slots with True IDE IBM MicroDrive Support
• Ethernet : 7 x 10/100/1000 Mbit/s Intel Pro 1000 Gigabit Ethernet ports supporting Auto-MDI/X through PCI-E single Lanes
• PCI Slots : 1x Mini PCI Slot, 1x Mini PCI 32 Bit Slot
• Serial port : 2x DB9 RS232C asynchronous serial ports
• LEDs / LCDs : 1x back lit 2character x16 character LCD Display, Power and HDD LED
• Speaker : Mini PC - Speaker
• Power : IEC C13 Power Cord, input power: 100VAC-250VAC 50Hz- 60Hz (International PSU)
• Fan : 3x Redundant CPU/Power Supply /Chassis Fans,
• Dimensions : 31cm x 45 cm x 4.4 cm
• Temperature : Operational: 0°C to 45°C
• Humidity : Operational: up to 95% relative humidity (non-condensing)
• Power Supply : 270W ATX PSU
• Operating System : MikroTik Router OS

Screen capture OC2000 di kondisi real, mampu melewatkan lebih dari 9 ribu pps dan menerima full route BGP (300K prefix) dengan CPU load 15%

Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
