Detail Produk

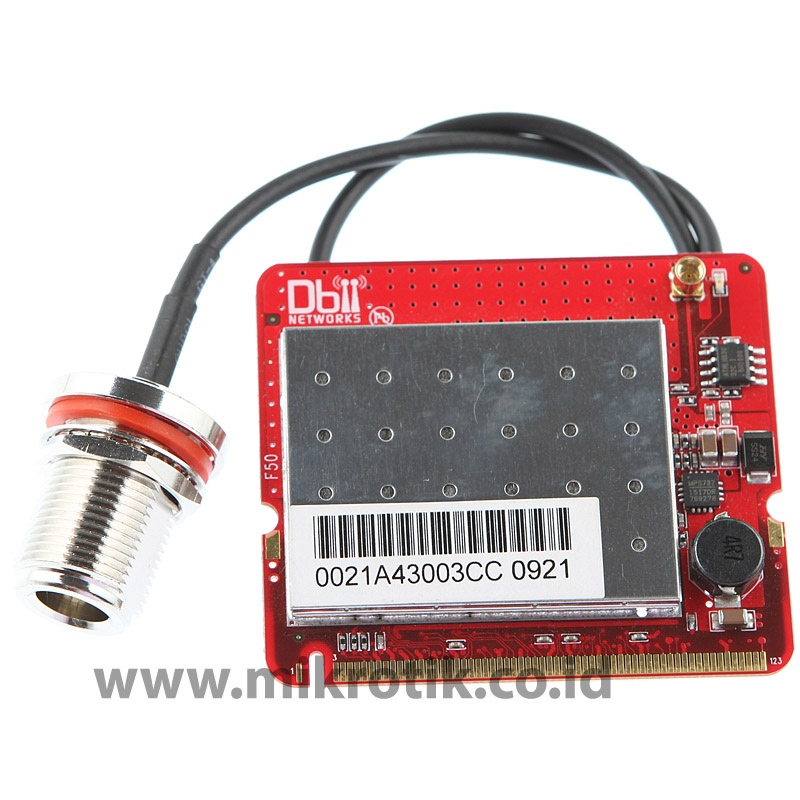

DBii-F50-PRO Wireless Minipci 500mW AG

klik pada gambar untuk melihat gambar lebih besar

Kategori : Interface Kode : F50-PRO Harga : Rp 690.000,00   DBii-F50-PRO wireless minipci card bekerja di frekuensi 5GHz, dengan output power 500 mWatt dan memiliki Rx sensivity hingga -97 dbm. Termasuk 1 buah pigtail MMCX to N-Female.   download brosur (pdf)

Transmitter Characteristics (Tx)

• Data Rate: 6Mbps, 36Mbps, 48Mbps, 54 Mbps
• RF Output Power: 27dBm, 26dBm, 24dBm, 22dBm
• DC Power consumption: 5.3W, 5.0W, 4.4W, 4.1W

Receiver Characteristics (Rx)

• Data Rate: 6Mbps, 36Mbps, 48Mbps, 54Mbps
• Receiver Sensitivity: -94dBm, -83dBm, -77dBm, -74dBm
• DC Power consumption: 1.1W, 1.1W, 1.1W, 1.1W

Miscellaneous

• RF connector: Single MMCX Plug
• Dimensions: 6 cm X 7.7 cm (2.1 inch X 3.0 inch)
• Operational Temperature: -40C to +80C
• Storage Temperature: -40C to +80C
• Humidity: 0% to 95% (non-condensing)
• MAC Chipset Atheros: AR5414 (6th Generation)
• Power offset: 8 dBm

Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
